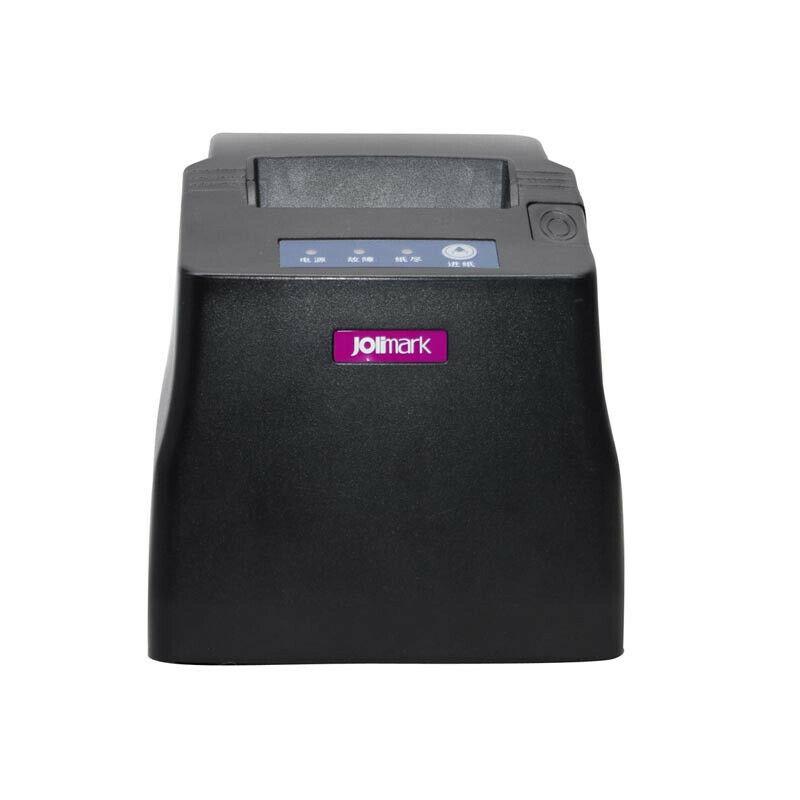

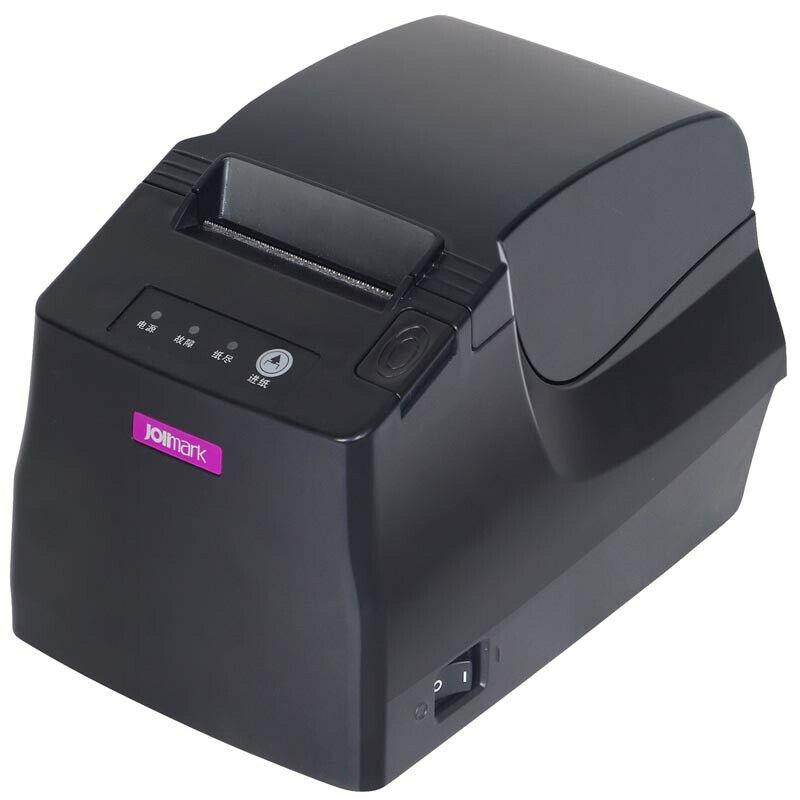

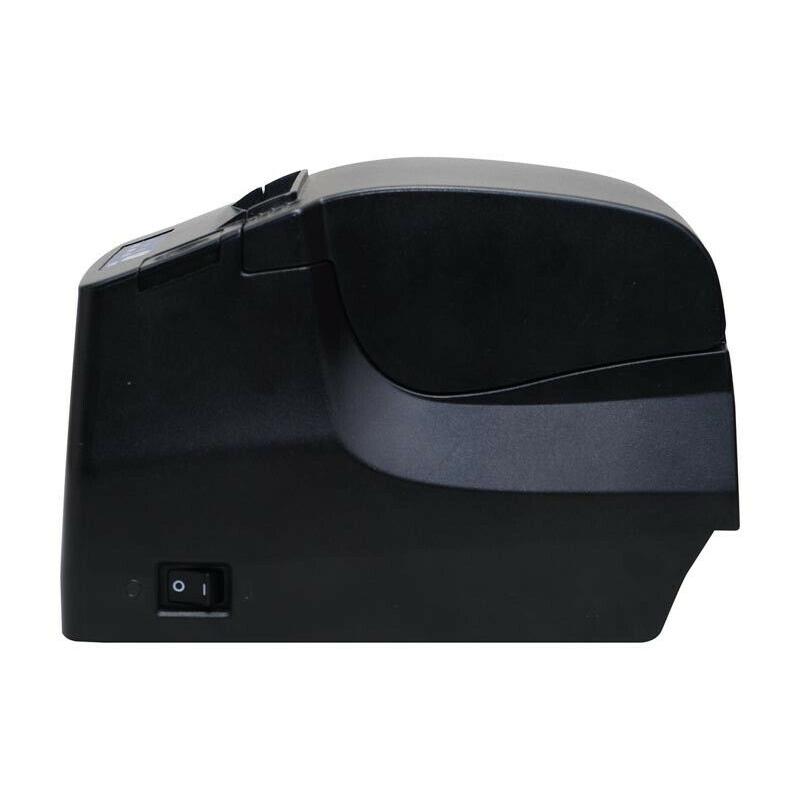

jolimark TP510 tp510ub bluetooth high speed receipt usb printer thermal with ac delivroo dinner 2go
jolimark TP510 tp510ub bluetooth high speed receipt usb printer thermal with ac
Please note: these printers have been tested for printing with new models android tablets. we cannot guarantee compatibility with any other tablets.
Tested and confirmed working on
- Deliveroo (tested with the official app,
not stupid browser login)
- Dinner2go (tested with the official app + browser with esc/pos printing app)
- Ubereats (untested - cannot guarantee it works. no returns if you can\'t get it working)
We cannot help with integration so you buy it at your own risk, if your android version is older you may not be able to set it up
TP510 Specification
Printing method Direct thermal printing
Dot density 384 dots/line (203?203 DPI)
Print speed 100 mm/s
Effective printing width 48 mm
TF50KS-E (Japan paper co.ltd)
Thermal paper Model AF50KS-E (JUJO THERMAL)
Width: 57.5 ? 0.5 mm
Weight: 53 ~ 80 g/m2
Paper specification Outer diameter: ?83 mm (Max.)
Thickness: 0.065 ~ 0.15 mm
Note: The inner diameter of paper shaft is ?12mm and the outer diameter of paper shaft is ?18mm.
Character set ASCII: 13 international character sets
Line spacing 30/203 inch, or programmable in 1/203 inch increment
Interface
USB interface + Bluetooth
Cash drawer interface RJ-11, 12V (DC)/1A
Special function Online parameter settings, Software online update
Input buffer 4 KB
ESC/POS Emulation
Control command Character printing command: Support ANK characters, user-defined characters and Chinese characters 1-2 times enlarged printing, can adjust character line spacing
Dot image printing command: Support different densities dot images and downloading image printing
Linear bar code: UPC-A, UPC-E, EAN-13, EAN-8, CODE39, CODE128, ITF-25, CODABAR
Power supply (AC adapter) IN Input voltage: 100 ~ 240 V(AC)
Frequency: 50Hz ~ 60Hz
OUT Output voltage: 8.5 V(DC)
Current: 3 A
Power input Parameters Input voltage: 8.5 V(DC)
Current: 3 A
Warning: Please use the original AC adapter only. Manufacturers have no responsibilities for the problems which are led by using unauthorized AC adapter.
Temperature: 5 ~ 35?
Environmental conditions Operating environment Humidity: 25~ 80%RH (No condensation)
Temperature: -40 ~ 55?
Storage environment Humidity: ?93%RH (40?, No condensation)
Weight Approx.1 Kg
Noise ?38 dB (A) (ISO7779 standard)
Physical dimensions 120 mm (Width) ? 192 mm (Depth) ? 130 mm (Height)
